等角
应用
桁架

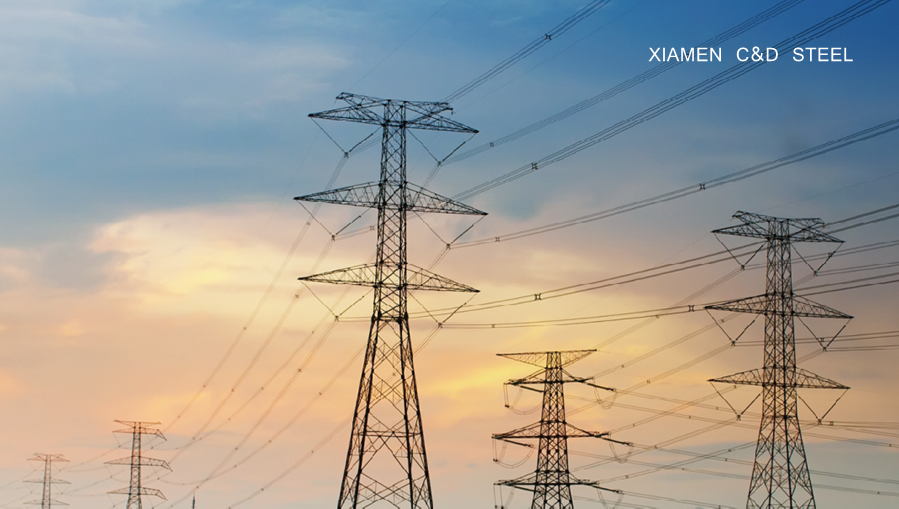

输电塔
电信塔
一般结构的支撑
结构用加强筋
尺寸: 20mm 至 250mm
尺寸规格:
JIS G3192、DIN 1028、EN 10056、GB700-1988
材料规格:
JIS G3192、SS400、SS540、EN 10025、S235JR、
S355JR ASTM A36 GB Q235B、Q345B 或等效
不等角
应用
桁架

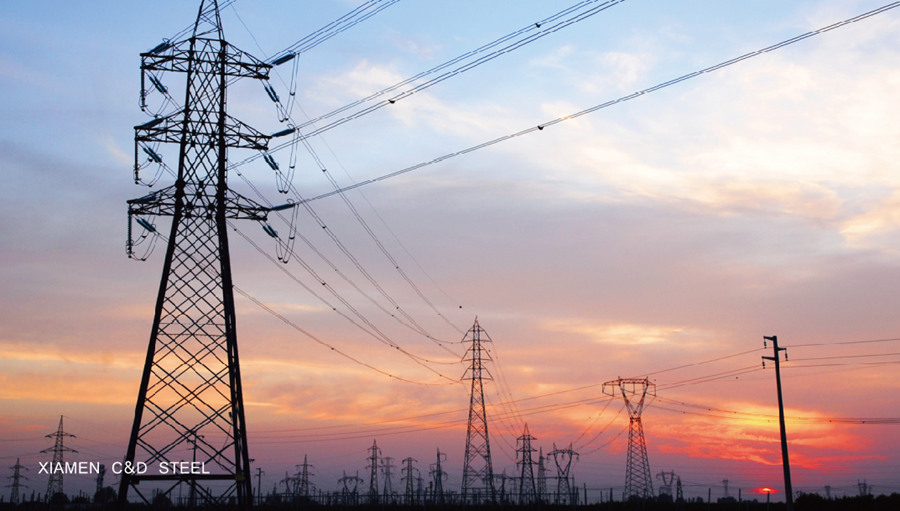

输电塔
电信塔
一般结构的支撑
结构用加强筋
尺寸: 75mm 至 250mm
尺寸规格:
JIS G3192、DIN 1028、EN 10056、GB700-1988
材料规格:
JIS G3192、SS400、SS540、EN 10025、S235JR、
S355JR ASTM A36 GB Q235B、Q345B 或等效
技术参数

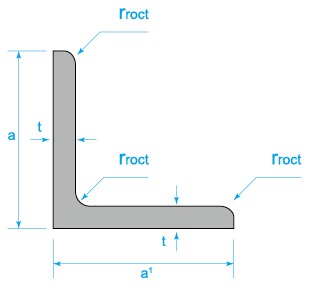

等角 | 维度 | 尺寸规格 | |||
---|---|---|---|---|---|
一个(毫米) | 吨(毫米) | 质量:公斤/米 | |||
EN 10056 | JIS G3192 | GB 707-88 | |||
A20×20×2.5 | 20 | 2.5 | × | × | 0.754 |
A20×20×3 | 20 | 3 | × | × | 0.889 |
A20×20×4 | 20 | 4 | × | × | 1.145 |
A25×25×2.5 | 25 | 2.5 | × | × | 0.95 |
A25×25×2.7 | 25 | 2.7 | × | × | 1.02 |
A25×25×3 | 25 | 3 | × | × | 1.124 |
A25×25×4 | 25 | 4 | × | × | 1.459 |
A25×25×5 | 25 | 5 | × | × | 1.778 |
A25×25×6 | 25 | 6 | × | × | 2.08 |
A30×30×2.3 | 30 | 2.3 | × | × | 1.074 |
A30×30×2.5 | 30 | 2.5 | × | × | 1.16 |
A30×30×2.7 | 30 | 2.7 | × | × | 1.246 |
A30×30×3 | 30 | 3 | × | × | 1.373 |
A30×30×4 | 30 | 4 | × | × | 1.786 |
A30×30×5 | 30 | 5 | × | × | 2.184 |
A30×30×6 | 30 | 6 | × | × | 2.564 |
A36×36×3 | 36 | 3 | × | × | 1.656 |
A36×36×4 | 36 | 4 | × | × | 2.163 |
A36×36×5 | 36 | 5 | × | × | 2.654 |
A38×38×2.3 | 38 | 2.3 | × | × | 1.371 |
A38×38×2.5 | 38 | 2.5 | × | × | 1.482 |
A38×38×2.7 | 38 | 2.7 | × | × | 1.593 |
A38×38×3 | 38 | 3 | × | × | 1.758 |
A38×38×3.7 | 38 | 3.7 | × | × | 2.137 |
A38×38×3.8 | 38 | 3.8 | × | × | 2.19 |
A38×38×4 | 38 | 4 | × | × | 2.297 |
A38×38×5 | 38 | 5 | × | × | 2.82 |
A38×38×6 | 38 | 6 | × | × | 3.326 |
A40×40×3 | 40 | 3 | × | 1.83 | 1.852 |
A40×40×4 | 40 | 4 | 2.42 | × | 2.422 |
A40×40×5 | 40 | 5 | 2.97 | 2.95 | 2.976 |
A45×45×4 | 45 | 4 | 2.74 | 2.74 | 2.736 |
A45×45×5 | 45 | 5 | 3.38 | 3.38 | 3.369 |
A45×45×6 | 45 | 6 | 4 | × | × |
A50×50×4 | 50 | 4 | 3.06 | 3.06 | 3.059 |
A50×50×5 | 50 | 5 | 3.77 | 3.77 | 3.77 |
A50×50×6 | 50 | 6 | 4.47 | 4.43 | 4.465 |
A60×60×4 | 60 | 4 | 3.7 | 3.68 | 3.643 |
A60×60×5 | 60 | 5 | 4.57 | 4.55 | 4.514 |
A60×60×6 | 60 | 6 | 5.42 | × | × |
A60×60×8 | 60 | 8 | 7.09 | × | × |
A60×60×10 | 60 | 10 | 8.72 | × | × |
A63×63×5 | 63 | 5 | × | × | 4.822 |
A63×63×6 | 63 | 6 | × | × | 5.721 |
A65×65×4 | 65 | 4 | 4.02 | × | × |
A65×65×5 | 65 | 5 | 4.97 | 5 | 4.907 |
A65×65×6 | 65 | 6 | 5.91 | 5.91 | 5.841 |
A65×65×8 | 65 | 8 | 7.73 | 7.66 | 7.662 |
A70×70×6 | 70 | 6 | 6.38 | 6.38 | 6.406 |
A70×70×7 | 70 | 7 | 7.38 | × | 7.398 |
A70×70×8 | 70 | 8 | 8.36 | × | 8.373 |
A70×70×9 | 70 | 9 | 9.34 | × | × |
A75×75×6 | 75 | 6 | 6.85 | 6.85 | 6.905 |
A75×75×7 | 75 | 7 | 7.94 | × | 7.796 |
A75×75×8 | 75 | 8 | 8.99 | × | 9.03 |
A75×75×9 | 75 | 9 | 10.1 | 9.96 | × |
A80×80×5 | 80 | 5 | 6.17 | × | × |
A80×80×6 | 80 | 6 | 7.34 | 7.32 | 7.376 |
A80×80×7 | 80 | 7 | 8.49 | × | 8.525 |
A80×80×8 | 80 | 8 | 9.63 | × | 9.658 |
A80×80×10 | 80 | 10 | 11.9 | × | × |
A90×90×7 | 90 | 7 | 9.61 | 9.59 | 9.656 |
A90×90×8 | 90 | 8 | 10.9 | × | 10.946 |
A90×90×9 | 90 | 9 | 12.2 | × | × |
A90×90×10 | 90 | 10 | 13.5 | 13.3 | 13.478 |
100 × 100 × 6 | 100 | 6 | 9.26 | × | 9.366 |
100 × 100 × 7 | 100 | 7 | 10.7 | 10.7 | 10.83 |
100 × 100 × 8 | 100 | 8 | 12.2 | × | 12.276 |
100 × 100 × 9 | 100 | 9 | 13.6 | × | × |
100 × 100 × 10 | 100 | 10 | 15 | 14.9 | 15.12 |
100 × 100 × 12 | 100 | 12 | 17.8 | × | 17.898 |
A110×110×8 | 110 | 8 | 13.43 | × | × |
A110×110×9 | 110 | 9 | 15.02 | × | × |
A110×110×10 | 110 | 10 | 16.6 | × | × |
A120×120×6 | 120 | 6 | 11.1 | × | × |
A120×120×7 | 120 | 7 | 12.9 | × | × |
A120×120×8 | 120 | 8 | 14.7 | 14.7 | 14.57 |
A120×120×9 | 120 | 9 | 16.5 | × | × |
A120×120×10 | 120 | 10 | 18.2 | × | 18.055 |
A120×120×11 | 120 | 11 | 19.9 | × | × |
A120×120×12 | 120 | 12 | 21.6 | × | × |
A120×120×15 | 120 | 15 | 26.6 | × | × |
A125×125×8 | 125 | 8 | × | × | 15.504 |
A125×125×10 | 125 | 10 | × | × | 19.133 |
A125×125×12 | 125 | 12 | × | × | 22.696 |
A125×125×14 | 125 | 14 | × | × | 26.193 |
A130×130×9 | 130 | 9 | 17.9 | 17.9 | × |
A130×130×10 | 130 | 10 | 19.8 | × | 19.625 |
A130×130×11 | 130 | 11 | 21.7 | × | × |
A130×130×12 | 130 | 12 | 23.6 | 23.4 | × |
A130×130×13 | 130 | 13 | 25.4 | × | × |
A130×130×15 | 130 | 15 | × | 28.8 | × |
140×140×10 | 140 | 10 | × | × | 21.488 |
140×140×12 | 140 | 12 | × | × | 25.522 |
A140×140×14 | 140 | 14 | × | × | 29.49 |
A150×150×10 | 150 | 10 | 23 | × | 22.765 |
A150×150×11 | 150 | 11 | 25.15 | × | × |
A150×150×12 | 150 | 12 | 27.32 | 27.3 | 27.13 |
A150×150×13 | 150 | 13 | 29.49 | × | × |
A150×150×14 | 150 | 14 | 31.64 | × | × |
A150×150×15 | 150 | 15 | 33.76 | 33.6 | × |
A150×150×16 | 150 | 16 | 35.87 | × | × |
A150×150×18 | 150 | 18 | 40.04 | × | × |
A150×150×19 | 150 | 19 | 42.1 | 41.9 | × |
A150×150×20 | 150 | 20 | 44.15 | × | × |
A160×160×10 | 160 | 10 | × | × | 24.729 |
A160×160×12 | 160 | 12 | × | × | 29.391 |
A160×160×14 | 160 | 14 | × | × | 33.987 |
A160×160×16 | 160 | 16 | × | × | 38.518 |
A175×175×12 | 175 | 12 | × | 31.8 | × |
A175×175×15 | 175 | 15 | × | 39.4 | × |
A180×180×12 | 180 | 12 | × | × | 33.159 |
A180×180×14 | 180 | 14 | × | × | 38.383 |
A180×180×16 | 180 | 16 | 43.5 | × | 43.542 |
A180×180×18 | 180 | 18 | 48.6 | × | 48.634 |
A200×200×14 | 200 | 14 | × | × | 42.894 |
A200×200×15 | 200 | 15 | × | 45.3 | × |
A200×200×16 | 200 | 15 | 48.5 | × | 48.894 |
A200×200×20 | 200 | 20 | 59.5 | 59.7 | 60.056 |
A200×200×24 | 200 | 24 | 71.7 | × | 71.168 |
A200×200×25 | 200 | 25 | × | 73.6 | × |
A250×250×25 | 250 | 25 | × | 93.7 | × |
不等角 | 维度 | 尺寸规格 | ||
---|---|---|---|---|
A1(毫米) | A2(毫米) | 质量:JG/M | ||
JIS G3192 | ||||
75×50×5 | 75 | 50 | 5 | 4.8 |
75×50×6 | 75 | 50 | 6 | 5.66 |
75×50×8 | 75 | 50 | 8 | 7.43 |
100×50×6 | 100 | 6 | 6 | 6.84 |
100×50×8 | 100 | 50 | 8 | 8.97 |
100×75×6 | 100 | 75 | 6 | 8.04 |
100 × 75 × 7 | 100 | 75 | 7 | 9.32 |
100 × 75 × 8 | 100 | 75 | 8 | 10.6 |
100 × 75 × 9 | 100 | 75 | 9 | 11.8 |
100 × 75 × 10 | 100 | 75 | 10 | 13.0 |
100×75×12 | 100 | 75 | 12 | 15.4 |
125×75×7 | 125 | 75 | 7 | 10.7 |
125×75×8 | 125 | 75 | 8 | 12.2 |
125×75×9 | 125 | 75 | 9 | 13.6 |
125×75×10 | 125 | 75 | 10 | 15.0 |
125×75×12 | 125 | 75 | 12 | 17.8 |
150 × 75 × 9 | 150 | 75 | 9 | 15.4 |
150×75×10 | 150 | 75 | 10 | 17.0 |
150×75×12 | 150 | 75 | 12 | 20.2 |
150×75×15 | 150 | 75 | 15 | 24.8 |
150×90×8 | 150 | 90 | 8 | 14.7 |
150×90×9 | 150 | 90 | 9 | 16.5 |
150×90×10 | 150 | 90 | 10 | 18.2 |
150×90×12 | 150 | 90 | 12 | 21.6 |
150×90×15 | 150 | 90 | 15 | 26.6 |
150×100×10 | 150 | 100 | 10 | 18.79 |
150×100×12 | 150 | 100 | 12 | 22.5 |
200 × 100 × 10 | 200 | 100 | 10 | 23.0 |
200 × 100 × 12 | 200 | 100 | 12 | 27.3 |
200 × 100 × 15 | 200 | 100 | 15 | 33.7 |
